3-POINT
HOMESTEAD SPRAYERS

The F/S Homestead Sprayer is a compact heavy duty 3-Point sprayer built for Utility Tractor’s. Sprayer features include a durable 22 GPM Hypro PTO Roller diaphragm pump with max pressure of 300PSI so you can complete large jobs fast. Category I for tractors under 50 Horsepower & Category II hitch for tractors over 50 Horsepower. Built in adjustable 4-point stand for easy installation. Spray Gun & Hose Reel for spot spraying.

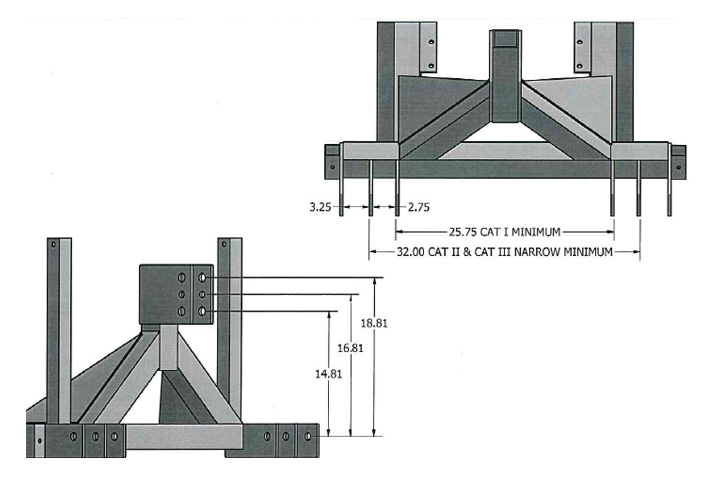

Category I or II Hitch
22 GPM Hypro PTO Roller Pump
Hose Reel & Spray Wand
TeeJet Manual Controls
4 Point Stand

View Catalog Page

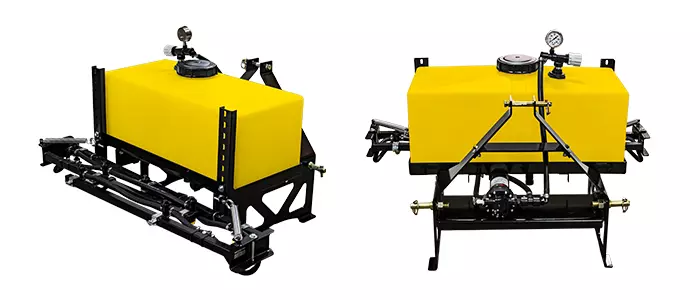

25 GAL. | BOOM12

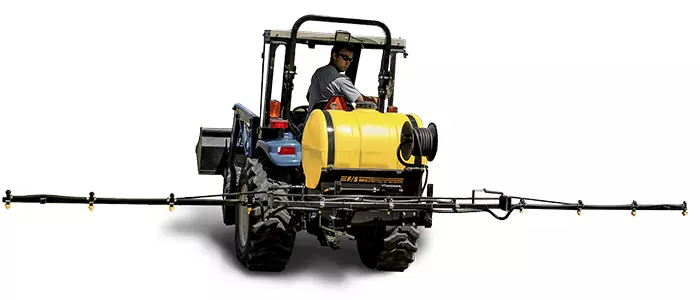

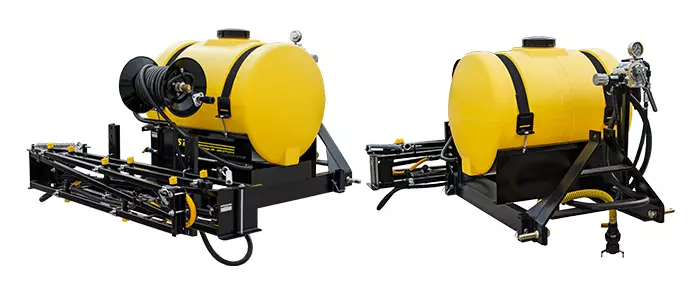

50 GAL. | BOOM22FLEX

50 GAL. | BOOM18

200 GAL. | BOOM45

200 GAL. | FRAME

200 GAL. | BOOM20

200 GAL. | BOOM30 | TIP-LIFT

MANUAL CONTROLS
ELECTRIC CONTROLS
OPTIONAL EQUIPMENT
DOWNLOADS
REQUEST INFORMATION

MANUAL CONTROLS

ELECTRIC CONTROLS

OPTIONAL EQUIPMENT

COMPATIBILITY	PART NUMBER	DESCRIPTION
HOMESTEAD-25 HOMESTEAD-50	BOOM12-3	12 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-25 HOMESTEAD-50	BOOM18-3	18 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-25 HOMESTEAD-50	BOOM18FLEX-3	18 Ft. Flex Spray Pattern (20 In. Spacing)
HOMESTEAD-25 HOMESTEAD-50	BOOM22FLEX-3	22 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-110 HOMESTEAD-150 HOMESTEAD-200	BOOM20	20 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-110 HOMESTEAD-150 HOMESTEAD-200	BOOM30	30 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-110 HOMESTEAD-150 HOMESTEAD-200	BOOM45	45 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-110 HOMESTEAD-150 HOMESTEAD-200	BOOM60	60 Ft. Spray Pattern (20 In. Spacing)
HOMESTEAD-110 HOMESTEAD-150 HOMESTEAD-200	HOMESTEAD-TL	Hydraulic Tip Lift (20, 30, 45, or 60 Boom)
AVAILABLE ON ALL HOMESTEAD SPRAYERS	SS PUMP	Stainless Steel Pump Upgrade
AVAILABLE ON ALL HOMESTEAD SPRAYERS	HOMESTEAD-HP	Hydraulic Pump Upgrade
AVAILABLE ON ALL HOMESTEAD SPRAYERS	HOMESTEAD FM6	Foam Marker 6 Upgrade with Bracket
AVAILABLE ON ALL HOMESTEAD SPRAYERS	HOMESTEAD FM14	Foam Marker 14 Upgrade with Bracket
AVAILABLE ON ALL HOMESTEAD SPRAYERS	HOMESTEAD FM25	Foam Marker 25 Upgrade with Bracket
AVAILABLE ON ALL HOMESTEAD SPRAYERS	BOOMLESS BOOMINATOR*	Boomless Kit w/ SS Boominator Nozzles
AVAILABLE ON ALL HOMESTEAD SPRAYERS	BOOMLESSBOOMJET*	Boomless Kit w/ Boomjet Nozzle
AVAILABLE ON ALL HOMESTEAD SPRAYERS	HOMESTEAD SPRAY GUN UPGRADE AA43L-AL10	TeeJet 22" Aluminum Spray Gun w/ Brass Swivel
*Multiple Nozzle Sizes & Spray Patterns Available

DOWNLOADS

3-Point Specifications

2025 Equipment & Parts Catalog

PART NUMBER	CAPACITY	DESCRIPTION
HOMESTEAD-25	25 Gallons	3 Point Homestead Sprayer
HOMESTEAD-50	50 Gallons	3 Point Homestead Sprayer
HOMESTEAD-110	110 Gallons	3 Point Heavy Duty Homestead Sprayer
HOMESTEAD-150	150 Gallons	3 Point Heavy Duty Homestead Sprayer
HOMESTEAD-200	200 Gallons	3 Point Heavy Duty Homestead Sprayer

PART NUMBER	CAPACITY	DESCRIPTION
HOMESTEAD-50-EC	50	3 Pt Homestead Sprayer
HOMESTEAD-110-EC	110	3 Pt Heavy Duty Homestead Sprayer
HOMESTEAD-150-EC	150	3 Pt Heavy Duty Homestead Sprayer
HOMESTEAD-200-EC	200	3 Pt Heavy Duty Homestead Sprayer
